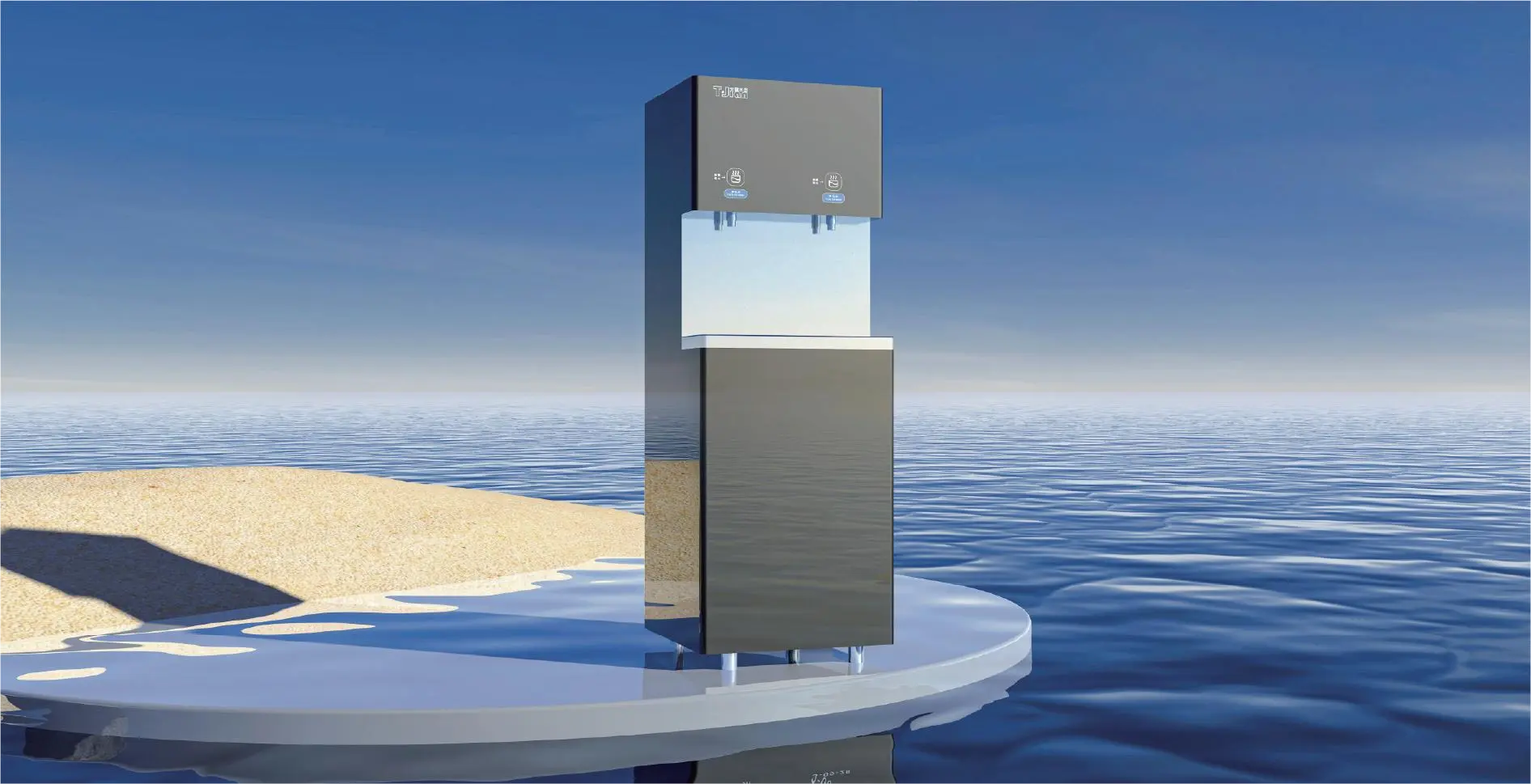

Heavy-Duty Step-Heating Commercial Water Dispenser with Hot & Ambient Dual Dispersers for Schools, Factories & Hospitals
Safeguarding public drinking water safety across the board with professional quality.
| Dimensions (mm) | 530*440*1550 |
|---|---|
| Application Scenarios | Subway, schools, hospitals |
| Power supply | 220V/50Hz |
| Filtration Accuracy (Nanos) | 30 |
| Flow Rate (L/min) | 4 |
Description
Featuring 30-nanometer ceramic membrane filtration technology, the system operates without antiscalants or microplastic contamination, precisely filtering out harmful substances such as bacteria and viruses to ensure clean, safe water. It utilizes a progressive heating process that raises the temperature layer by layer for continuous supply, completely eliminating issues associated with repeated heating or the mixing of hot and cold water, thereby ensuring every drop is fresh and pure.
Equipped with a food-grade 304 stainless steel inner tank that is safe and odor-free, the unit boasts a large 20L capacity, easily meeting peak-hour drinking water demands in public venues.
Tailor-made for locations such as subways, schools, and hospitals, the ceramic membrane technology significantly reduces equipment operation and maintenance costs, offering a worry-free, long-term solution that safeguards public drinking water quality with professional-grade reliability.
It also features an intelligent microcomputer control system integrating core functions such as scheduled power on/off, dry-burn protection, and energy-saving heat exchange; this ensures low energy consumption and eco-friendly, cost-effective operation. A high-definition display provides real-time status updates, while intuitive touch controls make it easy for people of all ages to use.
Company Overview
Hangzhou Cuiyuan Import & Export Co., Ltd. operates a state-of-the-art 70,000 ㎡ Smart Manufacturing Base, housing the world’s longest automated ceramic membrane tunnel kiln production line, stretching 128 meters. This facility represents the pinnacle of intelligent manufacturing in the water treatment industry, allowing us to maintain the highest standards of quality and efficiency.
Certificates
Factory Show
Factory Show
Q1: What are the main advantages of Cuiyuan Ceramic Membranes over traditional organic membranes?
A: Our Ceramic Ultrafiltration Membranes offer several superior benefits:
- Unmatched Durability: Service life exceeds 20 years, significantly longer than the 3-5 years of organic membranes.
- Higher Precision: A constant 30nm pore size ensures the removal of bacteria, viruses, and even microplastics.
- Superior Flux: Our membranes deliver fluxes 3 to 10 times higher than organic alternatives.
- Robustness: Capable of withstanding operating pressures up to 0.7 MPa and temperatures up to 800°C.
- Chemical Stability: Resistant to high concentrations of chlorine and various chemicals (pH 2-14) for intensive cleaning.
Q2: Is the water treated by your systems safe for direct drinking?
A: Yes. Our 30-nanometer (30nm) precision filtration effectively removes pathogens and suspended solids. The effluent turbidity is stably maintained below 0.05 NTU, which far exceeds international drinking water standards. Furthermore, our ceramic membranes are PFAS-free, ensuring no chemical or microplastic leakage into your water.
Q3: How does the Water Plant 3.0 System achieve such low energy consumption?
A: The Water Plant 3.0 utilizes our “Ultra-short Process” technology, which allows for direct filtration without the need for traditional heavy pretreatment. This simplified process reduces energy consumption from the industry average of 110 kWh/km³ to just 5 kWh/km³, representing a 95% saving in power costs.
Q4: What is the expected lifespan of a Cuiyuan Ceramic Membrane?
A: Thanks to the high-temperature sintering of inorganic materials (alumina and zirconia), our membranes are extremely wear-resistant and corrosion-resistant. The expected service life is over 20 years, making it a one-time investment for decades of reliable operation.
Q5: What is the water recovery rate of your system?
A: Our systems are designed for high efficiency and sustainability. The water recovery rate typically exceeds 98%, minimizing water waste and maximizing the utilization of your raw water source.
Q6: What are the maintenance requirements for these systems?
A: Cuiyuan water supply systems are designed for ease of use and low maintenance. They feature:
- Full Automation: Intelligent AI-driven control allows for stable, unattended operation.
- Self-Cleaning: Programmable automatic backwash and physical cleaning cycles prevent scaling and clogging.
- Durability: The inorganic material does not degrade or rot, requiring far fewer membrane replacements compared to organic systems.
Q7: Can the system handle highly turbid or challenging raw water?
A: Absolutely. Our ceramic membranes exhibit excellent resistance to oil, organic contamination, and high turbidity. They can filter highly turbid raw water directly while maintaining stable output and water quality, making them ideal for rivers, reservoirs, and even emergency water supply scenarios.
Q8: How does your technology contribute to environmental sustainability?
A: Sustainability is at the core of Cuiyuan’s solutions:
- Zero Waste: Used ceramic membrane materials are 100% recyclable into other ceramic products.
- Low Carbon Footprint: Extreme energy efficiency reduces CO2 emissions.
- Clean Technology: No chemical additives are required for the membrane structure itself, and the system is completely free of microplastics.
Q9: What is the footprint of a Water Plant 3.0 compared to traditional plants?
A: Due to the ultra-short process and modular design, the total project footprint is approximately only 25% of that required by conventional processes. This makes it an ideal solution for land-scarce urban areas or upgrading existing facilities.
