T.Jian Containerized Mobile Seawater Desalination System: Distributed Integrated Water Supply Station, Large-Scale Industrial RO Purification Plant

Developed by Tianjian Water, the Distributed Mobile Integrated Field Water Supply Station is a professional emergency water purification equipment tailored for complex scenarios including wartime conditions, field operations and disaster relief. Adopting lightweight, modular and fully automated integrated design, the vehicle-mounted device supports rapid deployment and withdrawal within 30 minutes. It adapts to all types of water sources such as surface water, brackish water and seawater. Equipped with multi-stage purification, reverse osmosis desalination and intelligent disinfection technologies, it produces safe drinking water that meets national drinking water standards. Integrated with real-time water quality monitoring and automatic bagged water filling functions, the equipment features simple maintenance, long service life and stable operation, effectively solving water shortage problems in extreme and war-stricken environments and providing reliable distributed emergency water supply support.

Inquiry
Category

Description

In 2026, the continuous escalation of conflicts in the Middle East has not only shattered the peace of this land, but also severed the lifeline of local residents – freshwater resources. As the world’s most oil-rich region, the Middle East is trapped in a severe freshwater shortage crisis, and the spreading warfare has further exacerbated the already grim water crisis.
Seawater desalination plants on Iran’s Qeshm Island have been attacked and shut down, and water supply facilities in Bahrain have been affected by the warfare. The “blue engines” that once sustained the lives of tens of millions of people have broken down one after another, leading to a complete collapse of the water supply system. Bottled water on supermarket shelves has been snapped up in a frenzy, with the price of a single bottle of drinking water far exceeding that of several liters of gasoline. The saying “water is more precious than oil” is no longer an exaggerated metaphor, but a daily survival reality for countless civilians in the Middle East. Children’s chapped lips, surgeries suspended in hospitals due to water shortages, and anxious residents waiting with empty water buckets all speak of the despair and helplessness brought by water scarcity.
In the context of current politics, water resource security has long served as the cornerstone of national security. When warfare destroys water supply facilities and every drop of water becomes an unattainable luxury, we deeply recognize that water is the bottom line of survival, the most precious asset besides peace, and a strategic resource in urgent need of protection. Faced with the drinking water crisis amid Middle East conflicts and the global challenge of water resource scarcity, an efficient and reliable emergency water supply solution is urgently needed to break the current predicament.
Proposed by China’s technological innovation and developed by Tianjian Water, the Distributed Mobile Integrated Field Water Supply Station solves emergency water supply challenges with cutting-edge technology and professional expertise.

Four Standardized Design Principles for Field Mobility Adaptability

Strictly designed in accordance with four core principles – equipment-oriented design, modularization, standardization and automation – the water supply station adopts a multi-unit integrated modular structure. It highly integrates functional modules including advanced water purification, seawater desalination, water storage, self-disinfection and bagged water filling. The entire system can be mounted on a self-loading and unloading vehicle chassis for flexible transportation and rapid deployment. With a deployment and withdrawal time of no more than 30 minutes, a total weight of no more than 7 tons and compliant overall dimensions, it precisely meets the rapid water supply demands of complex scenarios such as wartime emergency response and field operations, realizing reliable distributed mobile water supply support.

Full-process Purification and Full Water Source Adaptability

It establishes a full-process water treatment system covering front-end pretreatment, in-depth core treatment and disinfection, capable of customized treatment of Class I to V surface water and brackish water specified in GB3838-2002, as well as Class I to IV seawater specified in GB3097. The front-end pretreatment is completed via self-cleaning filters, ozonated water and rotational flow air flotation. The core equipment consists of a ceramic ultrafiltration membrane advanced purification unit (effluent turbidity ≤ 0.05 NTU) and a dedicated reverse osmosis membrane seawater desalination unit, achieving a surface water purification capacity of ≥5 tons per hour and a seawater/brackish water desalination capacity of ≥1.5 tons per hour. A mineralization device is equipped after reverse osmosis treatment to accurately adjust the pH value and mineral content of produced water and optimize taste. Supported by sodium hypochlorite disinfection technology, the produced water fully complies with the drinking water standards specified in GB5749-2022. Pure water can be directly produced after seawater desalination, effectively preventing risks of water source damage and poisoning.

Intelligent Monitoring & Efficient Filling for Full-scenario Adaptability

The rear end is integrated with dual modules of online water quality monitoring and automatic bagged water filling, which monitors water quality indicators in real time to ensure stable and safe water supply. The filling equipment supports high-speed filling at a rate of no less than 40 bags per minute for 400ml specifications and no less than 20 bags per minute for 1.5L specifications, facilitating portable water use in field environments. All units of the system operate automatically with simple operation and low maintenance requirements. The core ceramic ultrafiltration membrane features high pressure resistance, pollution resistance and a service life of over 20 years. Adaptable to complex water quality such as high-turbidity water with reasonable energy consumption configuration, it fully meets diverse water demand in field scenarios.

integrated field water supply station 01

integrated field water supply station 02

integrated field water supply station 03

integrated field water supply station 04

integrated field water supply station 05

Company Overview

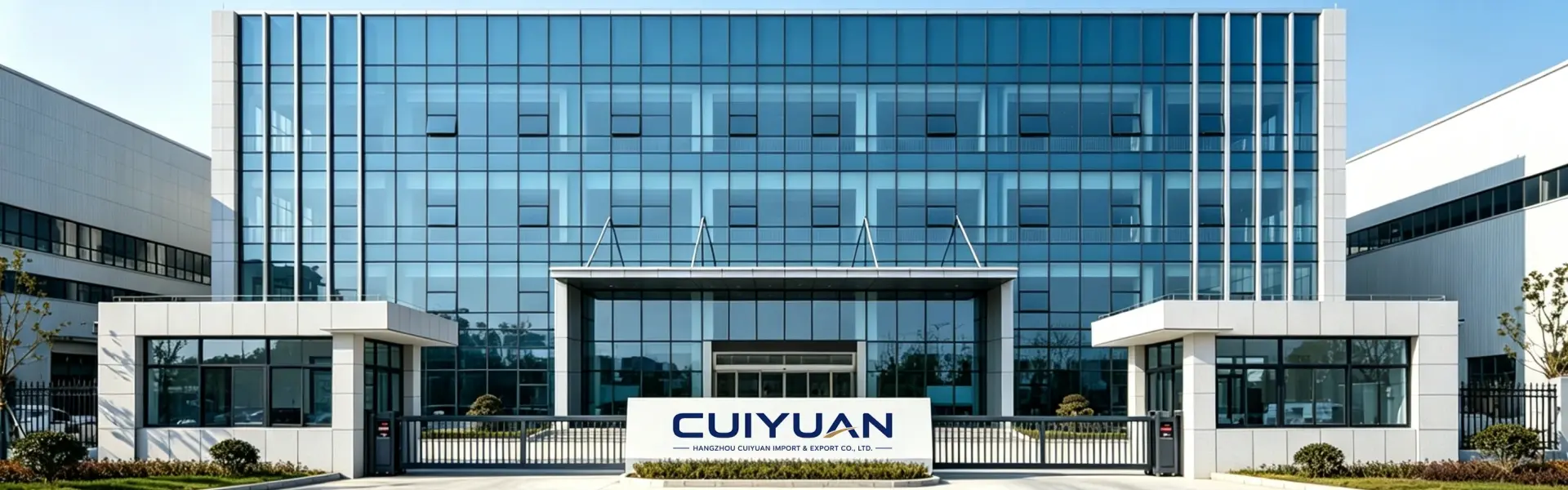

Hangzhou Cuiyuan Import & Export Co., Ltd. operates a state-of-the-art 70,000 ㎡ Smart Manufacturing Base, housing the world’s longest automated ceramic membrane tunnel kiln production line, stretching 128 meters. This facility represents the pinnacle of intelligent manufacturing in the water treatment industry, allowing us to maintain the highest standards of quality and efficiency.

about img 01

Certificates

certifications img 02
certifications img 03
certifications img 04
certifications img 05
certifications img 06
certifications img 07
certifications img 08
cqm certifications

Factory Show

Factory Show

A: Our Ceramic Ultrafiltration Membranes offer several superior benefits:

  • Unmatched Durability: Service life exceeds 20 years, significantly longer than the 3-5 years of organic membranes.
  • Higher Precision: A constant 30nm pore size ensures the removal of bacteria, viruses, and even microplastics.
  • Superior Flux: Our membranes deliver fluxes 3 to 10 times higher than organic alternatives.
  • Robustness: Capable of withstanding operating pressures up to 0.7 MPa and temperatures up to 800°C.
  • Chemical Stability: Resistant to high concentrations of chlorine and various chemicals (pH 2-14) for intensive cleaning.

A: Yes. Our 30-nanometer (30nm) precision filtration effectively removes pathogens and suspended solids. The effluent turbidity is stably maintained below 0.05 NTU, which far exceeds international drinking water standards. Furthermore, our ceramic membranes are PFAS-free, ensuring no chemical or microplastic leakage into your water.

A: The Water Plant 3.0 utilizes our “Ultra-short Process” technology, which allows for direct filtration without the need for traditional heavy pretreatment. This simplified process reduces energy consumption from the industry average of 110 kWh/km³ to just 5 kWh/km³, representing a 95% saving in power costs.

A: Thanks to the high-temperature sintering of inorganic materials (alumina and zirconia), our membranes are extremely wear-resistant and corrosion-resistant. The expected service life is over 20 years, making it a one-time investment for decades of reliable operation.

A: Our systems are designed for high efficiency and sustainability. The water recovery rate typically exceeds 98%, minimizing water waste and maximizing the utilization of your raw water source.

A: Cuiyuan water supply systems are designed for ease of use and low maintenance. They feature:

  • Full Automation: Intelligent AI-driven control allows for stable, unattended operation.
  • Self-Cleaning: Programmable automatic backwash and physical cleaning cycles prevent scaling and clogging.
  • Durability: The inorganic material does not degrade or rot, requiring far fewer membrane replacements compared to organic systems.

A: Absolutely. Our ceramic membranes exhibit excellent resistance to oil, organic contamination, and high turbidity. They can filter highly turbid raw water directly while maintaining stable output and water quality, making them ideal for rivers, reservoirs, and even emergency water supply scenarios.

A: Sustainability is at the core of Cuiyuan’s solutions:

  • Zero Waste: Used ceramic membrane materials are 100% recyclable into other ceramic products.
  • Low Carbon Footprint: Extreme energy efficiency reduces CO2 emissions.
  • Clean Technology: No chemical additives are required for the membrane structure itself, and the system is completely free of microplastics.

A: Due to the ultra-short process and modular design, the total project footprint is approximately only 25% of that required by conventional processes. This makes it an ideal solution for land-scarce urban areas or upgrading existing facilities.
